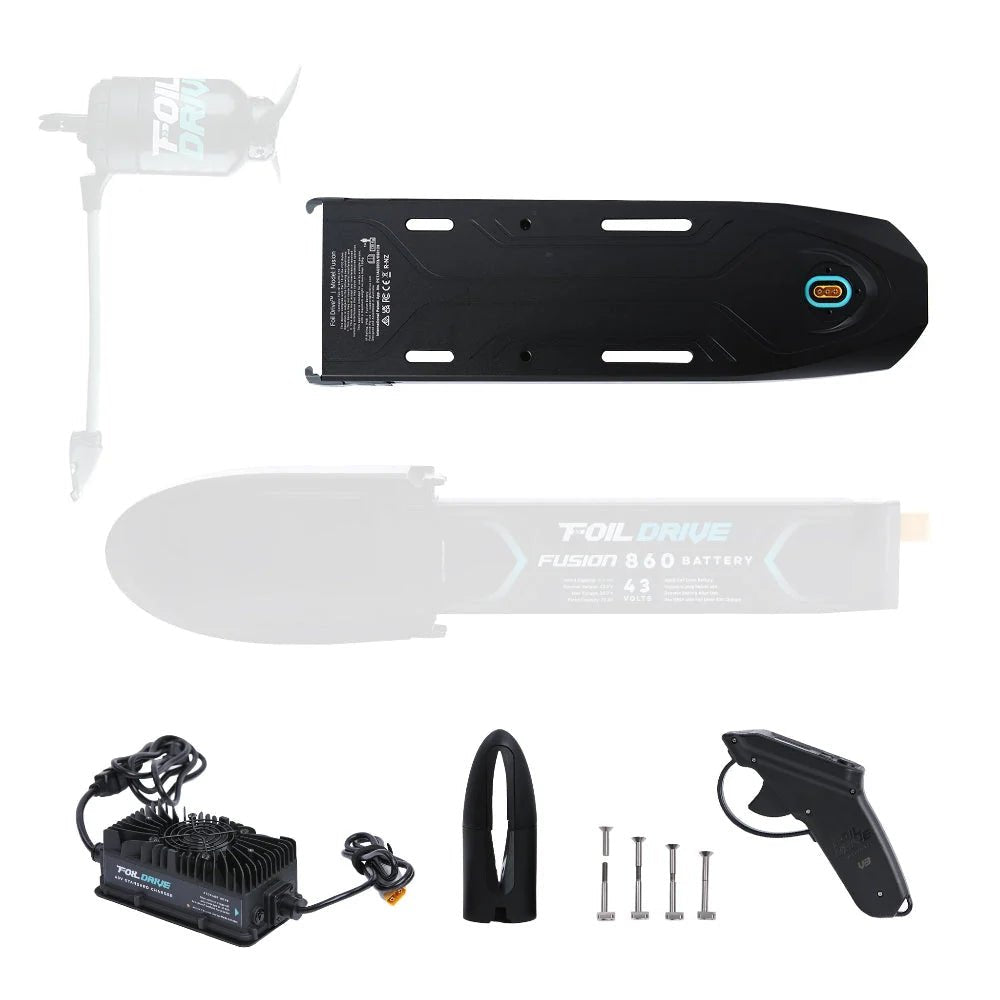

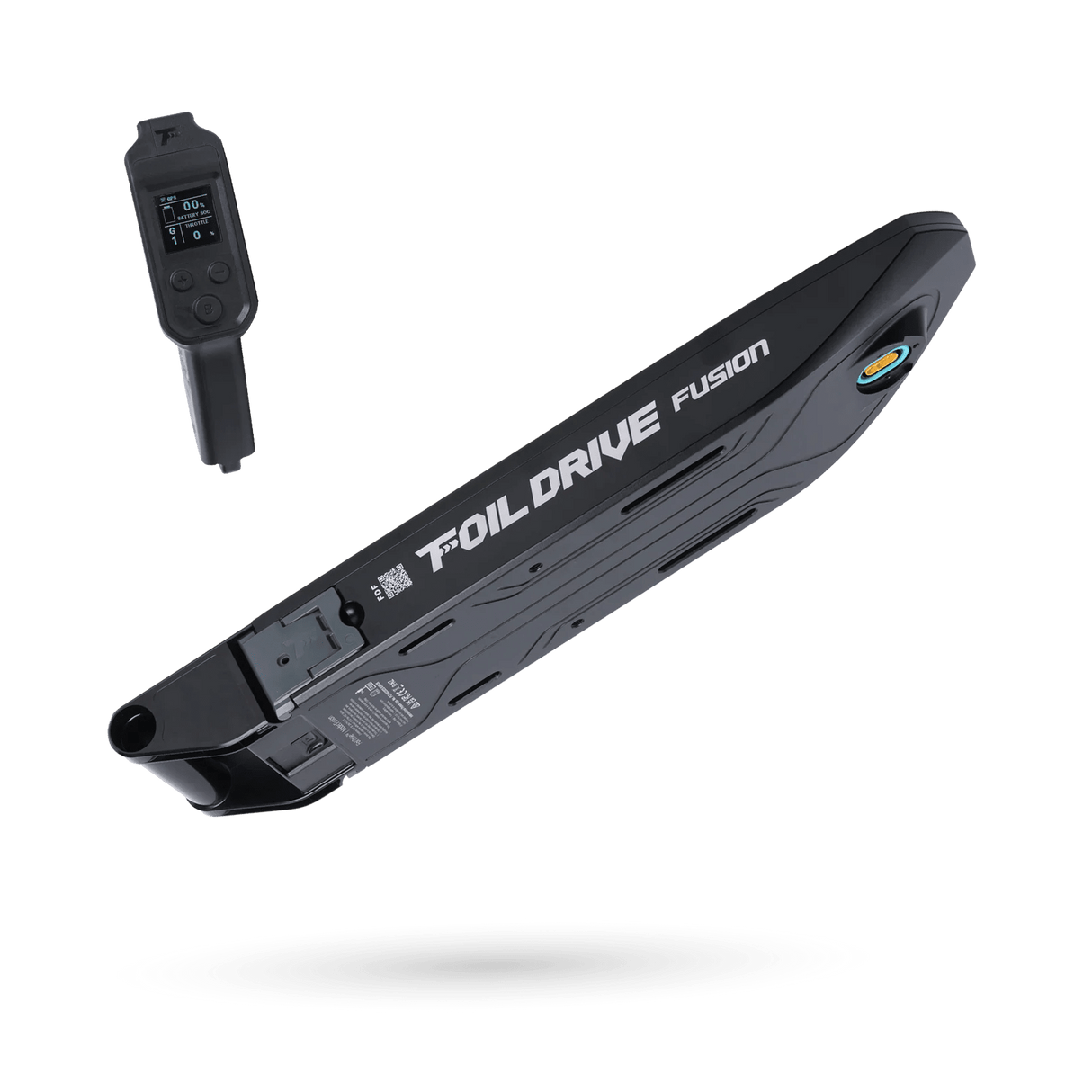

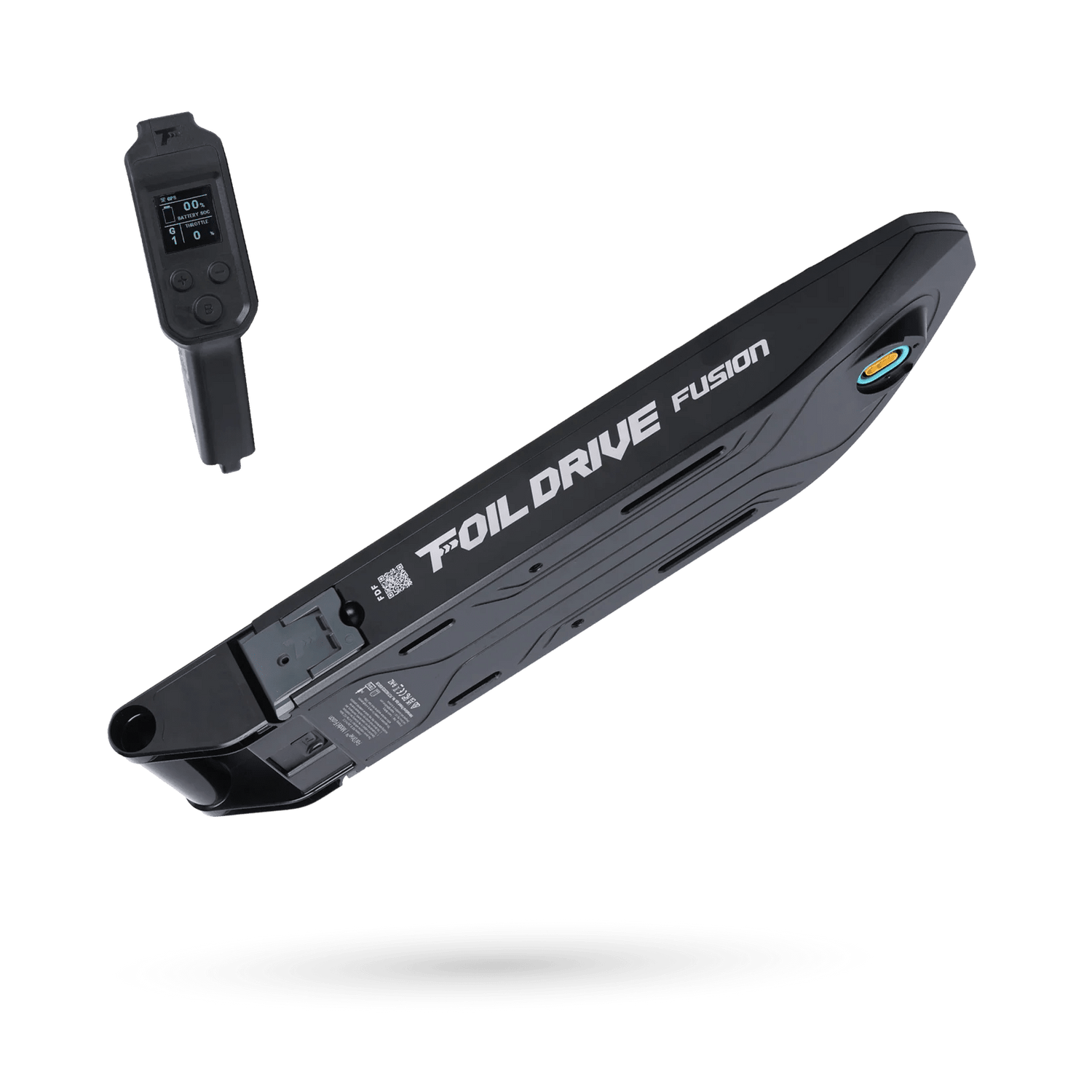

Foil Drive Fusion Base Kit (No Battery)

Take your foiling to the next level with the Foil Drive Fusion Base Kit, the most powerful and versatile electric foil assist system Foil Drive has ever created. Designed as a true hybrid between a traditional foil assist and an eFoil, the Fusion delivers significantly more thrust, longer ride times, and unmatched adaptability while allowing you to ride your favorite foil setup.

Unlike a complete bundle, the Fusion Base Kit is perfect for riders who already own a compatible 43V charger or are building a custom system. Simply pair it with your preferred Fusion 860 Battery and compatible motor to create a setup tailored to your riding style. Whether you're learning to foil, tackling long-distance downwinders, wing foiling in marginal wind, or maximizing dock starts and flatwater sessions, the Fusion provides the power and runtime to keep you on the water longer.

Built around Foil Drive's next-generation 43V platform, the Fusion produces up to 34 kg (74.9 lbs) of thrust while maintaining the lightweight feel and hydrodynamic efficiency that made Foil Drive the industry leader. The redesigned V3 Controller features integrated GPS tracking, ride statistics, and advanced safety functions including a programmable tilt sensor that automatically disables the motor during falls for added rider protection. The IP68-rated electronics and rugged battery housing are engineered to withstand harsh marine environments and years of demanding use.

The Fusion isn't just an electric foil system—it's a platform that grows with you. Switch between eFoil-style cruising and high-performance foil assist by changing motor positions or cable lengths, giving you one system capable of surf foiling, wing foiling, wake foiling, downwind foiling, and flatwater exploration.

Features

• Hybrid electric foil assist and lightweight eFoil alternative
• Base kit for riders who already own a compatible AC charging lead
• Up to 34 kg (74.9 lbs) of maximum thrust
• Powerful 43V electronics for increased performance and efficiency
• Compatible with the Fusion 860 Battery (sold separately)

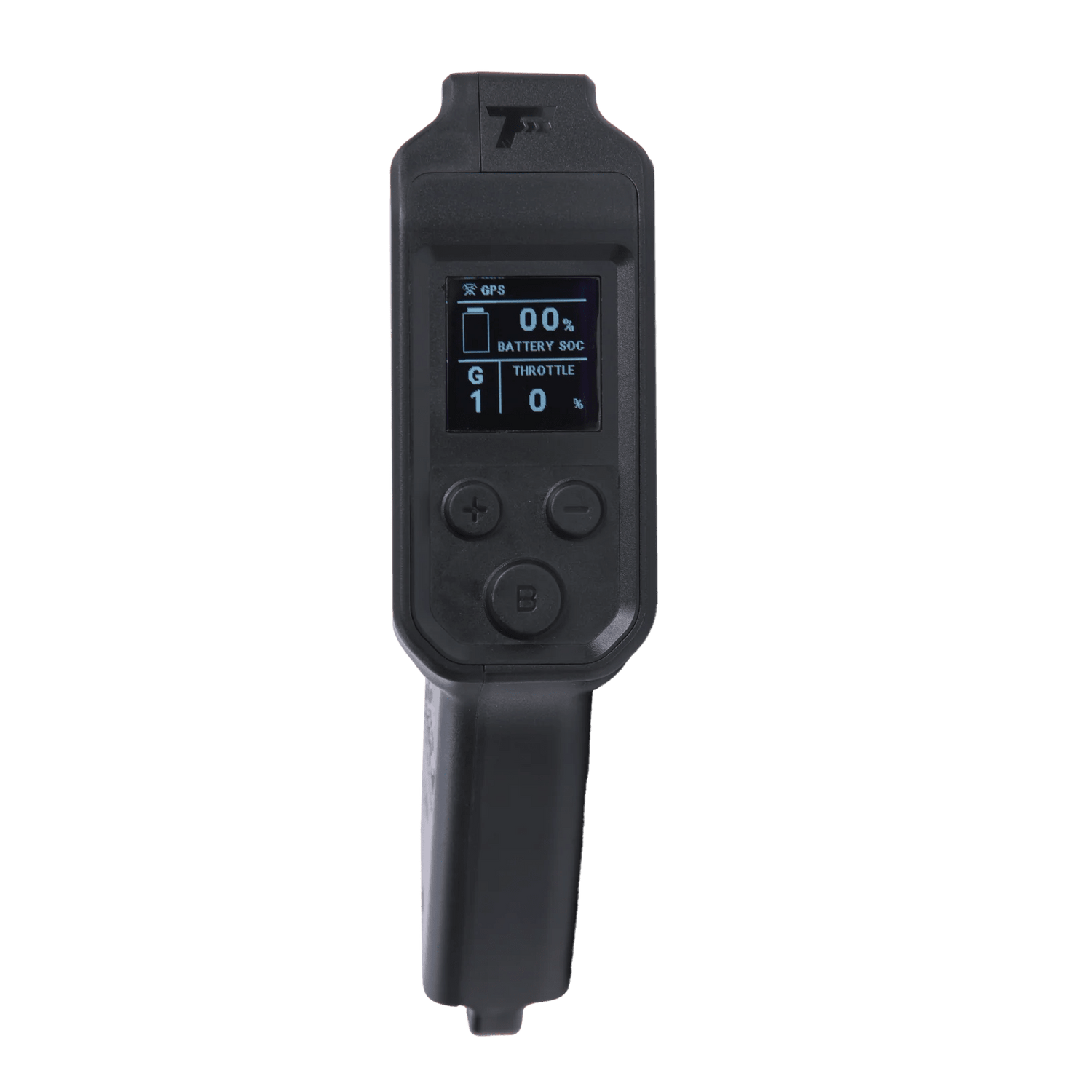

• V3 Bluetooth controller with GPS ride tracking and session data
• Programmable tilt sensor for enhanced rider safety
• Lightweight, hydrodynamic design minimizes drag while riding
• IP68-rated electronics for exceptional water resistance
• Compatible with surf, wing, wake, downwind, and flatwater foiling

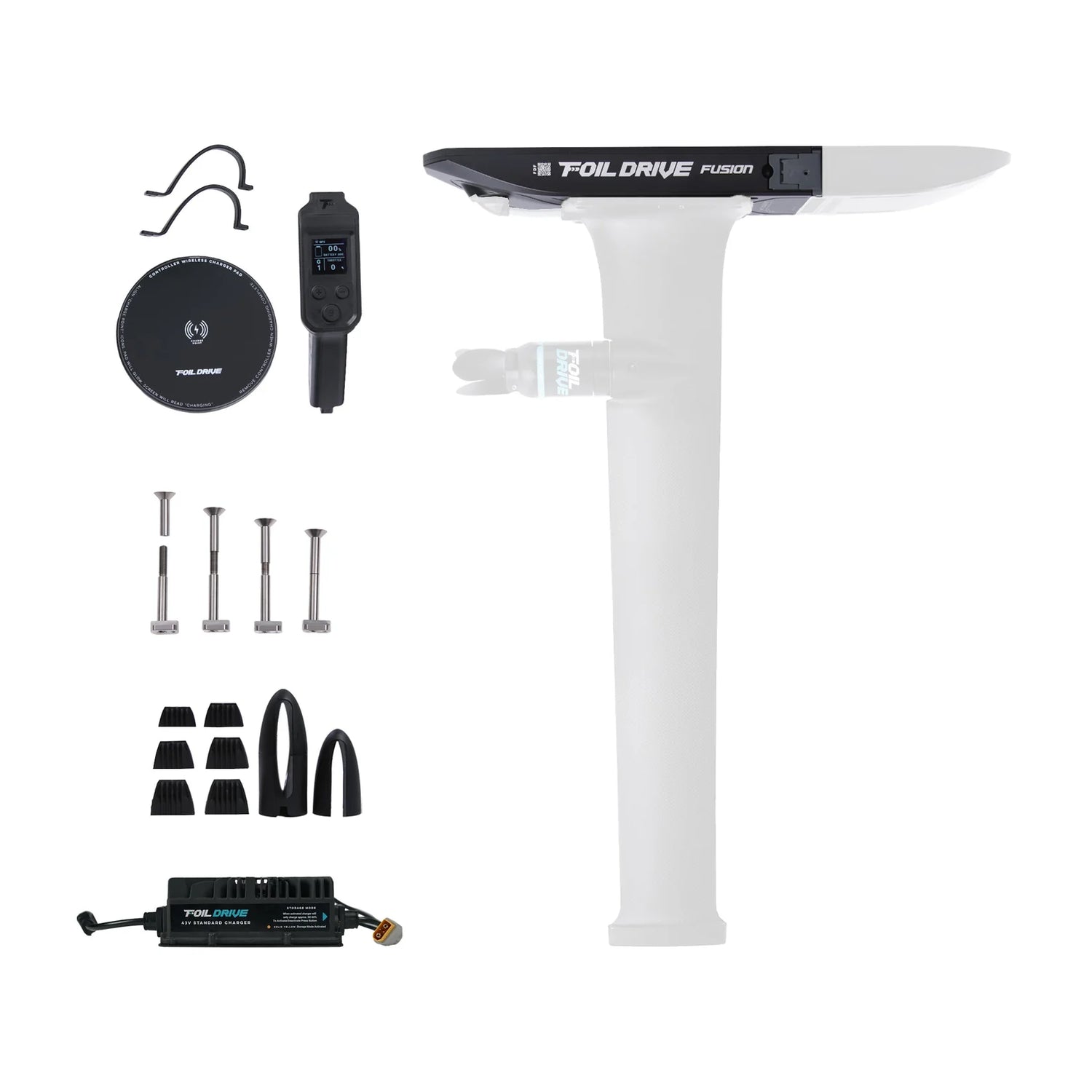

• Premium titanium hardware, tool caddy, controller accessories, and installation components included

Specifications

• System Voltage: 43.2V
• Maximum Thrust: 34 kg (74.9 lbs)
• Peak Power: 2,155W (2.89 HP)
• Sustained Power: 1,750W (2.35 HP)
• Battery Compatibility: Fusion 860 (864Wh, sold separately)
• Minimum Installed Weight: 7.9 kg (17.4 lbs) with Fusion 860 Battery
• Water Resistance: IP68
• App Compatibility: iOS & Android Foil Drive App
